Remote Control Module BieneRemote1280GMDEENENLVRU

GSM Controler BieneRemote1280GM
GPRS/FTP Remote Data-Logger module

BR128xGM - obsolete products
new module - BR1280SM3G (please contact with e-mail for more info)

Remote Control and Monitoring
Temperature remote monitoring with Smartec SHT160-30 temperature sensor,
Temperature and Humidity monitoring with Sensirion SHT11 sensor (-SHT),
Internal control (all BR128x modules).

BieneRemote1280GM (DIN-Rail products)

BieneRemote1280GM GSM controller is a communications device that connects used for wireless Data-Logging, Alarm Monitoring and Control of remote equipments and systems. The BieneRemote1280GM provides logging of data to internal EEPROM memory and to a web-server for access through a web browser. Multiple users can interrogate the BieneRemote1280GM or be notified on configurable events. The built-in quad-band Telit GM862-QUAD GSM modem and is compatible with all 850, 900, 1800 or 1900Mhz GSM networks. Heater resistor auto control possibility.

M2M module-module communication.
Two BR1280GM-I/O with special firmware for connection up to 8-wire virtual cable between remoted devices. 8 slow digital signal can be transfer via SMS from BR1280GM-I/O-1 inputs to BR1280GM-I/O-2 outputs.

BieneRemote1280GM
with build-in GSM modem
Telit GM862



Features:

  • Internal quad-band GSM-modem
  • 12 digital inputs
  • 8 analog inputs (0-5V, 0-10V, 0-20mA, 4-20mA)
  • 8 digital outputs
  • 1 (3) input for Smartec SMT160-30 temperature sensor
  • On-board power supply monitoring (optional)
  • On-board temperature monitoring (optional)
  • Software included
  • Notification using SMS messaging via cell phone
  • Data Logging using GPRS / FTP
  • Control via SMS
  • Cell Phone - BieneRemote Control
  • Module to Module communication and management
  • Internal management without SMS
  • Heater resistor auto control possibility
  • Configuration from PC and SMS
  • Sensirion SHT11 temperature and humidity sensor support (optional)
  • MODBUS-RTU, MODBUS-ASCII; RS232/RS485 support (optional)
  • from MODBUS/RS232/RS485 to SMS conversion (optional)
  • DIN-Rail enclosure
  • PC monitoring software (optional)


BR1280GM.pdf
BR1280GM-software.pdf
FTP-CSV-monitoring-software-for-BR1280GM
http://www.bieneelectronics.com/products/soft/BR1280GM.rar
http://www.bieneelectronics.com/products/soft/FTPCSV1280.rar


BR1280GM base version

Digital inputs
12 / 10
Analog inputs
8
Inputs for temperature sensors
1 / 3
Input for temperature and humidity sensors
1
Digital outputs
8
RS485 and MODBUS support
-
Parameter from external devices to SMS
-
Custom function
-
Counter inputs
-

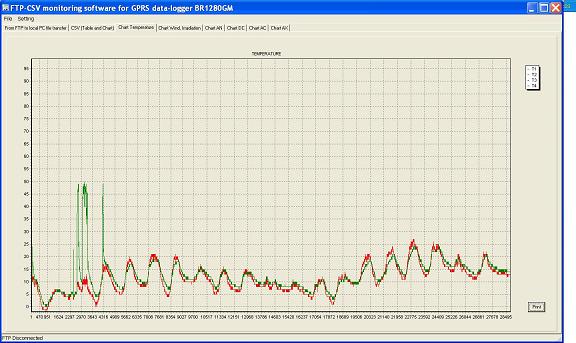

FTP-CSV monitoring software for BR1280GM GPRS data-logger
Download demo
