BieneRemote ApplicationsDEENENLVRU
Demo
move cursor to small picture

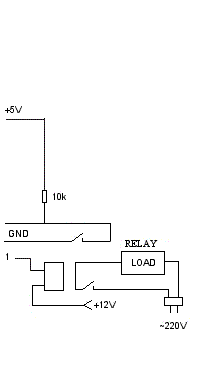

1. Connection to electromechanical relay.
2. Connection to Solid State Relay.
3. Connection to protective input external ALARM SYSTEM. system.
4. Home alarm application.
5. Connection to E-T-A Level Sensor NR 80.
Level Sensor NR 80 is designed to monitor a preset medium level in electrically non-conductive containers with a wall thickness up to approx. 5 mm. It is fitted outside the container. Suitable for water and other electrically conductive liquids with a high relative dielectric constant Śr. Available as MIN or MAX sensor.
6. Connection to E-T-A Level Sensor NR 100.
Level Sensor NR 100 is designed to monitor liquids, granules, and powder. It is especially suitable for aggressive media and foodstuffs. Available as MIN or MAX monitor.
7. Connection to sensor with 0-10V output
11. Connection to Smartec temperature sensor SMT 160-30 - http://www.smartec.nl
The SMT160-30 is a three terminal integrated temperature sensor, with a duty-cycle output. Two terminals are used for the power supply of 5 Volts and the third terminal carries the output signal.
12. Connection to level sensor RSF54 - http://www.elfa.se/pdf/35/03588803.pdf

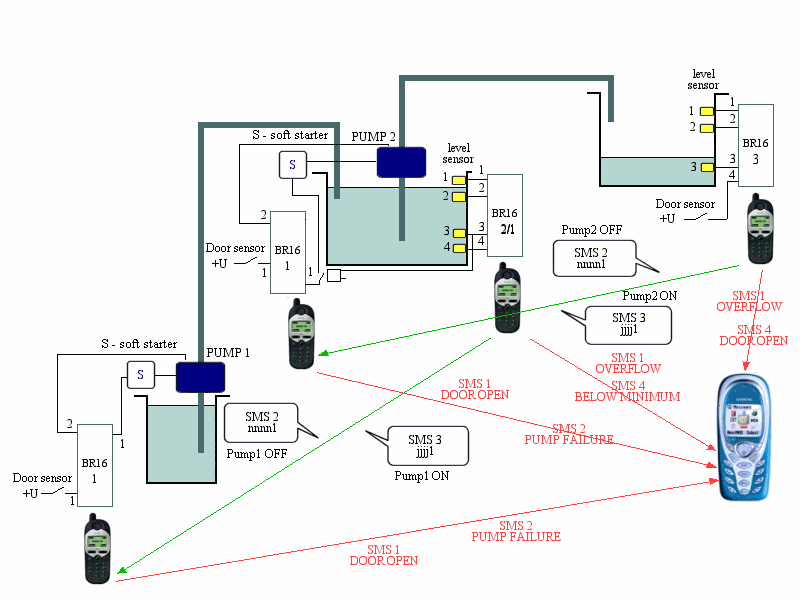

Pump and level sensor application example

TYPICAL APPLICATIONS
(wireless embedded applications
with use of our present and future products)

Typical applications include:

  • Gas, water and oil flow metering
  • Tower lighting monitoring
  • Power station monitoring and control
  • Flood control monitoring
  • Liquid tank level and temperature monitoring.
  • Meteorological (weather) station monitoring
  • Geological and earthquake monitoring
  • Security system monitoring
  • Water Rig control and monitoring
  • Process monitoring using SMS
  • Supervisory control of water systems (measurement of water levels in rivers and dams)
  • Remote control and monitoring of electricity transformers, high and low voltage cabins
  • Remote control and monitoring of wind generators
  • Remote control and monitoring of gas distribution plants.
  • Monitor and control your home security system from anywhere using the mobile phone
  • Automatic meter reading
  • Unmanned Base Station control and monitoring
  • Unmanned equipments monitoring
  • Data centres and computer rooms control and monitoring
  • Oil temperature near the oil tank, oil pressure in the engine, turbo boost pressure
  • Remote equipment sensing and control
  • Remote alarm system, access control and alarm monitoring
  • Light control
  • Presence simulation
  • HVAC (heating, ventilation, air-conditioning) control and monitoring
  • Cold room refrigeration system control and monitoring
  • Car remote control (alarm system, heater, central door)
  • Real-time fleet management
  • Remote control and monitoring of air quality and humidity
  • Monitoring the state of vending machines for fill-level
  • Monitoring the performance and maintenance needs of leased equipment
  • Low cost telemetry system (wireless GSM and SMS based telemetry)
  • Remote telemetry/meter (use SMS for data telemetry, data logging)
  • Video monitoring

HOME AUTOMATION

Home automation through remote control and monitoring via your cellphone. You can switch lights on or off, open or close an electric gate, interface an alarm system in case of intrusion, send an SMS to set air conditioning to your preferred level. The system can also warn you when there has been a power failure, etc. Light, heating, ventilation, air-conditioning control and temperature monitoring.

BUILDING AUTOMATION

Large and small buildings control and monitoring (lightings, heating, ventilation, air-conditioning, lifts, fire protection, emergency power generator, security, TV).
Remote control and monitoring of air quality and humidity. Remote control of air conditioning and heating systems. Detection of crucial alarms (fire, lift, rotating equipment, air conditioning, electrical fault, water distribution etc.). Alarm management through GSM & SMS messaging. Access control and Supervision of gate entries. Building management with lighting automation. Remote control of various techniques in building automation with alarming. Local control of electrical high voltage cabinets.

SECURITY SYSTEM

Alarm system sends an SMS to the security company. This SMS message can be re-routed to other destinations. Alarm systems can be activated or deactivated by sending an SMS using your cell phone.

HVAC (Heating, Ventilation & Air Condition)

HVAC (Heating, Ventilation & Air Condition) control and monitoring. HVAC section shows how effective management of a homes resources can lead to big savings.

TEMPERATURE MONITORING

In warehouses the refrigerators and freezers contain stock that has a significant value. By using our remote control module attached to the thermostat, the refrigeration company responsible for maintenance can be notified as soon as the temperature rises above a preset point. Once notified a technician can be dispatched to rectify the problem.

UNMANNED EQUIPMENT MONITORING

Unmanned Base Station, telecommunication and other equipment remote control and monitoring over GSM using SMS. 24x7 monitoring.
Data centres and computer rooms remote control and monitoring (air-conditioning, UPS, standby power generators, fire alarm systems, temperature meter and water leakage detector). 24x7 monitoring.

PUMP STATION SUPERVISING (Water pump, fuel pump, oil pump, petrol pump).

A typical application - is remote pump stations that are commonly used by water supply and water treatment plants. A plant or factory may need to monitor a level in a sump, the low rate of the liquid that is pumped to or from the pump station and may need to monitor of the temperatures on pumps.

Automatic engine pump unit monitoring and remote control system with SMS Text Message notification direct to your mobile phone. Reports messages including: Low Flow; High Pressure; Low Pressure; Hi Temperature; Oil Pressure; Low Pump Pressure; High Pump Pressure; High Engine Temperature; Low Engine Oil Pressure. Operational status can be checked at any time by simply calling SMS and waiting for the return SMS text message. The engine pump unit can easily be shut-down remotely from the operator's mobile phone.

TANK MONITORING

Tank remote monitoring level and temperature. Remote monitoring of level of chemical tanks. Remote level control of tanks via SMS. Regulation and monitoring of gas tanks and production reservoirs. Remote control of fuel tanks.

IRRIGATION SYSTEM

Via SMS Irrigation Control. With the SMS text message it can also now deliver alarm information on pump conditions, reservoir levels, pipe leaks or flows. With the SMS text instruction can stopped, starting or running of irrigation process.
Monitoring weather conditions and soil moisture affecting the irrigation schedules and pump controls. Remote control and telemetry water pumps. Remote control and telemetry water tanks. Remote control and monitoring of food control and irrigation soil moisture monitring systems.

ENVIRONMENT

Automation and remote control of ground de-pollution. Monitoring of groundwater and soil cleanup system. Monitoring of river water levels. Mobile Station for the control of water storm overflows. Remote surveillance of avalanches. Atmosphere status monitoring. A system for the remote analysis of groundwater.

ELECTRICITY

Remote control and monitoring of electricity transformers, high and low voltage cabins, wind mills electricity generators. Telemetry and monitoring for energy transactions from various power plants.
Energy counters measurement with reporting.

GAS MANAGEMENT

Remote control and monitoring of gas distribution plants. Turbine gas metering (volume and energy remote metering)

INDUSTRY

Automation and remote control of steel machinery equipment. Remote control of vaccuum installation. Local control of chemical process and alarming by SMS. Remote counting of various energies (water, gas, electricity). Automation and remote alarming of industrial power generators.

FLEET MANAGEMENT

Telemetry systems using GSM networks offer a cost-effective alternative. A our remote control module installed in a vehicle can have multiple sensors throughout the vehicle, e.g. remaining petrol, etc. This information can be automatically sent from the vehicle at regular intervals or can be requested from the operator. The information is real-time, so actions can be taken to prevent reckless driving or damage to the vehicle.

---

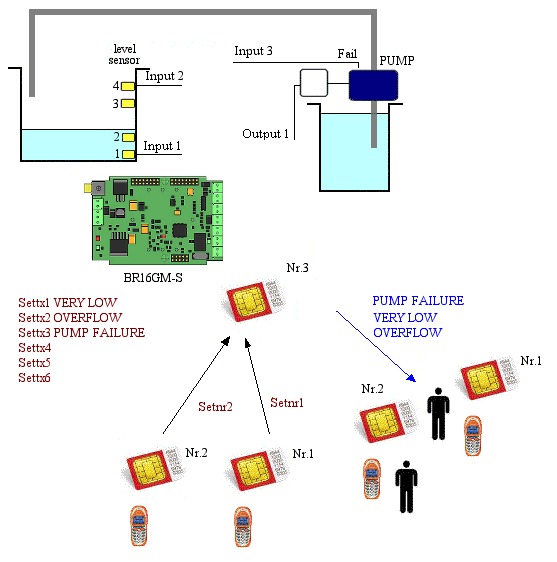

Pump Station and Irrigation Systems monitoring with one BR16GM-S

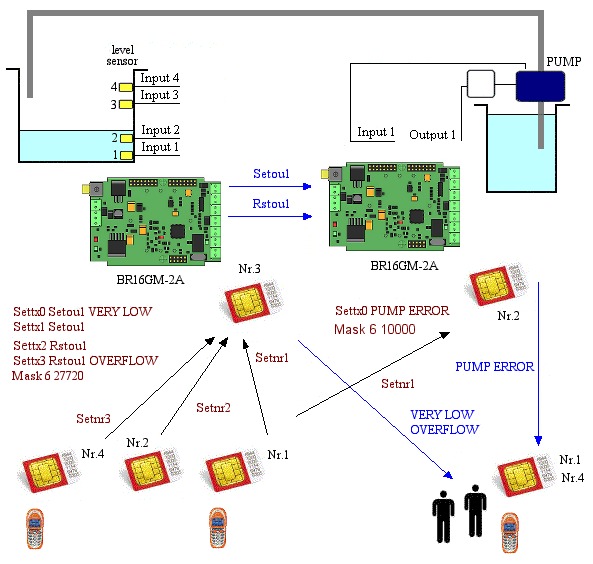

Pump Station and Irrigation Systems monitoring with two BR16GM-2A



Remote control and monitoring of electricity transformers, high and low voltage cabins, wind mills electricity generators. For measurement of the instant charge and quantity of the diversified liquids, and also for the account of quantity of thermal energy and the heat-carrier in systems of heating and hot water supply. Energy and heat-water counters measurement with SMS reporting.
Automatic water level and pump unit monitoring and remote control system with SMS message notification direct to your mobile phone.

From remote cell phone it is possible to request an information from device. Device information readings will come as one or several messages. You can order the module for remote transfer of the information from various electronic devices with interface RS232 or RS485 and for management of the various electronic equipment.
You can order the module for remote transfer of the information from various electronic devices with interface RS232 or RS485 and for management of the various electronic equipment.
