Measurement Equipments
(ETC, Slovak Republic)
|  | ETC
Measuring LAB II
The EMLII (ETC Measuring Lab II) is a second generation
of measuring devices from ETC company. The devices in this family features great
price/performance ratio. All devices of this family are CE certified.
The
EMLII contains:
M621 - 150MHz Digital Storage Oscilloscope
M611 - Logic
Analyzer
M631 - Aribtrary Waveform Generator
|  | M621
150MHz Digital Storage Oscilloscope
Occupies one 5¼" floppy
disk drive slot or external version.
Two channels, 150 MHz Bandwidth
50 MS/s real time and 5 GS/s repetitive
10 mV/div to 5V/div in Nine Vertical
Voltage Range
150 MHz spectrum analyzer with FFT using
ETC Scope software
for Windows 3.x, 95, 98, ME, NT, 2000 & Linux included
ETC M621 Development
Kit optionally available
|  | M611
Logic Analyzer
The ETC M611 Logic analyzer is a package, which will
together with PC create 32 channel logic analyzer with sampling rate up to 100MHz.
Maximum length of record is 524280 of 32-bit words.
32 channel logic analyzer
Sampling rate up to 100MHz
Length of record 524280 of 32-bit words.
Software for measuring and later data analysis
Connected to PC via parallel
port (EPP) or USB
|  | M631
Arbitrary Waveform Generator
The Arbitrary Waveform Generator ETC
M631 is a hardware and software package that turns your PC to a dual channel generator
featuring a generation of analog signals and also digital events defined maximally
by 262 144 points.
Internal or external version
Two channels update
rate up to 50MS/s
Level from 160mVpp to 16Vpp
Shift from -4V to +4V
Powerful waveform editors
Import from ASCII (for example Matlab)
Possibility to generate 16-bit digital words
|  |
The
M520 Oscilloscope Series belongs to the ETC Measuring Lab 3 (EML3) line
and offers a wide range of devices. It provides a customer with a possibility
to select a device perfectly fitting his or her needs offering the best performance/cost
ratio. All devices of the M520 Oscilloscope Series offer extremely simple and
intuitive installation and operation, can adapt to any screen resolution (from
800 x 600 pixels upwards). They are powered directly from the USB interface.
- Frequency response of vertical amplifiers 60..150MHz
- Max. realtime
sampling frequency 50..200MS/s
- Max. equivalent sampling frequency 5..
20GS/s
- Size of storage for each channel 4/8K
|  | M221
100MHz Digital Storage Oscilloscope
ETC M221 is a package that turns
your PC compatible computer into a dual channel (four-channel) digital storage
oscilloscope with the 100 MHz bandwidth. The oscilloscope uses the 16-bit ISA
bus add-on card EM221 for data acquisition and the Scope software for processing.
Together it creates a very user-friendly environment, where all controls are easy-to-access
either by mouse or other pointing device. A user, who is used to operate a standard
oscilloscope, will master the M221 in a very short period of time.
|  | M321
Arbitrary Waveform Generator
ETC M321 is a package that turns your
PC compatible computer into a 2-channel arbitrary generator. This device consists
of the EM321 ISA bus add-on card and a software, using which you can easily control
the device. All generator functions are easy-to-control by mouse. Besides standard
waveform types (sine wave, saw, triangle, rectangle), that are already implemented
and ready to use, it is possible to define or create desired waveform by using
the built-in powerful waveform editor by either entering a mathematical expression
or simply drawing a waveform by mouse. You can set a waveform shape and amplitude
independently for each channel.

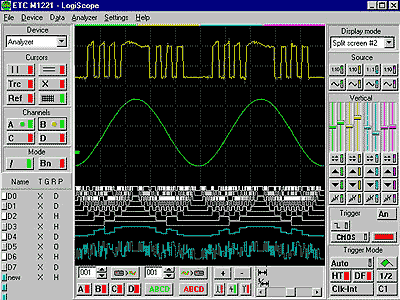

|  | M1221
Mixed Signals Oscilloscope
M1221 MSO (Mixed Signals Oscilloscope)
offers the performance of two different measuring devices: a dual channel digital
storage oscilloscope and a 16 channel logic analyzer. It has integrated cross
triggering and system clocking. The package also contains all necessary clips
and wires as well as very user-friendly and easy-to-use software which will let
you to control this device from the screen as comfortably as you would expect
from common stand alone devices. Additionally, it has unique capability of a fully
synchronized logic analyzer and oscilloscope cooperating together as a single
device.
 |
|
