TRC50, Curve Tracer
The curve displayed on the screen shows component performances The Curve Tracer
is an essential tool for troubleshooting circuits and testing components The TRC500
is very useful in the early stages of failure analysis. It can identify electrical
failures that exhibit abnormal voltage-current relationships at the output pins.
- Research laboratory
- Production facility
- Maintenance laboratory
- Quality control department
College & University electronic teaching Field of Application
2-Ch analog, 10-bit, 100MS/s, A/D + 8 Digital Channel, 100MS/s + 1 signal generator
10MHz USB 2.0
- 2 Channels, 10 bits, 100MS/s simultaneously
8 digital inputs sampling at 100MS/s
- 1 Signal generator 50MS/s
A Very low-cost solution!
20MS/s Mixed PC Based Oscilloscope
- Oscilloscope: 2-Ch, 20
MS/s, 12-bit resolution, up to 8MS
- Arbitrary Waveform Generator: 2-Ch,
20MS/s or 1-Ch, 40MS/s, 12-bit resolution, up to 8MS
- Logic Analyzer:
16-Ch, 25MHz, up to 8MS
- AcquiFlex Software included
- Open PC
Platform PC base with Windows XP, 512MB RAM, 40GB Hard Drive,CD-R Drive Small
Series High Speed Multifunction Board for PCI bus |
low-cost data acquisition boards for PCI bus. The CH Series provide two analog
input channels, 20MS/s, 12 bits, two analog output, 20MS/s, 12 bits, 16 digital
I/O, 16MB memory, 2 counter/timer and an onboard DSP.
Series Multifunction Board for PCI bus |
Acquitek introduces low-cost
data acquisition boards for PCI bus. The CM Series provide 16/32 analog inputs,
16 bits, up to 1MS/s, two analog output, 1MS/s, 16 bits, 16/32 digital I/O, 3
counter/timers, 16MB memory and an onboard DSP.
1.0GS/s, 12 bits, Arbitrary Waveform Generator |
• 1.0 GS/s, 12-bit
• Single full size PCI compliant card
• SFDR less
than -50 dB at 100 MHz
• Full scale Trise/Tfall = 260 psec typical
Program up to 32K independent segments
• Program up to 16K loops/segment
• 4 MS memory standard
• 8 TTL marker outputs standard
- Storage Oscilloscope
- Spectrum Analyzer
- Transient Recorder
Arbitrary Waveform Generator
is a powerful computer controlled measuring instrument that consists of four measuring
instruments: a Multimeter, Oscilloscope, Spectrum analyzer and Transient recorder.
Also an AWG (Arbitrary Waveform Generator) is available. This new powerful and
compact measuring instrument can solve almost every measurement problem.
Measurement Equipments from Acquitek |
| || |
Vibration and Acoustic Analysis. Rotating Machinery Vibration Analysis.
Vibration Monitoring. Data Acquisition. Vibration Analysis and Monitoring System
Ethernet-Based Portable High-Speed Waveform Acquisition.
Series Ethernet-Based Data Acquisition System Components.
- Adds analog I/O, digital I/O and frequency I/O to Ethernet-based test systems
- All I/O can be synchronous, enabling precise timing between various I/O
- 8 differential, or 16 single-ended inputs using signal conditioning
and expansion options
- Up to 40 built-in TTL-level digital I/O
Portable Vibration Analysis and Monitoring System.
with eZ-Series software and your PC makes a real-time, portable vibration analysis
- 8 dynamic input channels, expandable up to 56
- 4 tachometer channels for rotational measurements
Ethernet connection to the PC for continuous recording
Ethernet-Based Portable High-Speed Waveform Acquisition. The WaveBook/516E
is ideal for measuring dynamic signals in portable and laboratory applications.
- 16-bit/1-MHz A/D
- Single and multichannel analog triggering with programmable
level and slope
- Programmable pre- and post-trigger sampling rates
digital inputs can be scanned synchronously with analog signals
Stand-Alone, Intelligent PC-Based Data Acquisition Systems Models
/300, /360. The LogBook/360 data acquisition system includes an expansion bay
for up to three signal conditioning cards.
- Operates without a PC at
the test site 16-bit, 100-kHz analog and digital sampling
- Compact yet
expandable architecture can accommodate over 400 channels of analog, digital,
and frequency I/O
- Stand-alone nonvolatile storage of over 500 million
samples via removable PC-Card memory
Miniature Serial/IEEE 488 Controller. The low-cost Micro488/p
enables IEEE 488 control from any computer equipped with a serial port.
serial to IEEE 488 controller available. Controls up to eight IEEE 488 instruments.
Programmed with concise ASCII commands. Requires no external power supply—powered
from the computer’s serial port. Enables remote control of IEEE 488 instruments.
Easily connects to notebook PCs.
1 Mbyte/s PCI/IEEE 488.2 Board with Plug and Play, Digital I/O,
and Software for PCs. Personal488/PCI provides IEEE 488.2 one Mbyte/s data transfer
and plug-and-play installation.
- Features PCI local bus compatibility
- Provides 1 Mbyte/s data transfer
- Features plug-and-play
full IEEE 488.2 support
- Includes Windows® drivers
- Provides 8-channels
of general-purpose digital I/O
Other Measurement Equipments from IOtech |
Measurement Equipments GaGe

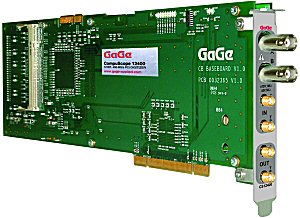

New 12 bit, 400 MS/s PCI bus digitizer for precision signal
- 200 MS/s sampling on 2 synchronous channels
- 400 MS/s on
- 12 bits nominal resolution
- 200 MHz bandwidth· Full-size,
single-slot PCI card
- Up to 4 Gigabytes of on-board acquisition memory
- Full-featured, software-controlled front-end
- 32 bits, 66 MHz PCI standard
for 200 MB/s transfer to PC memory
32 Bit, 100 MHz Digital Input Card for PCI Bus
32 Bits of Digital Data.
100 MHz Clock Rates.
to provide 8, 16, or 32 Bits.
Up to 2 GB of On-Board Acquisition Memory.
Multi-Card Systems providing wider input words of 64, 96, or 128 Bits.
CMOS or ECL/PECL data inputs.
Software Development Kits for C/C++, MATLAB,
LabVIEW under Windows 95/98/ME and Windows NT/2000/XP.
82G 2 GS/s, 8 Bit Waveform Digitizer for PCI Bus
is a single slot, PCI bus card capable of performing 8 bit A/D conversion at sampling
rates up to 2 GS/s in one-channel mode and 1 GS/s in dual channel simultaneous
mode. The CS82G uses two monolithic A/D converters each running at 1 GS/s. In
single-channel mode the two ADCs are clocked in a "ping-pong" mode to achieve
up to 2 GS/s sampling. In dual channel mode, the two ADCs are clocked absolutely
simultaneously to provide coherent sampling.
Measurement Equipments from GaGe |
Measuring LAB II |
The EMLII (ETC Measuring Lab II) is a second generation
of measuring devices from ETC company. The devices in this family features great
price/performance ratio. All devices of this family are CE certified.
M621 - 150MHz Digital Storage Oscilloscope
M611 - Logic
M631 - Aribtrary Waveform Generator
M520 Oscilloscope Series belongs to the ETC Measuring Lab 3 (EML3) line
and offers a wide range of devices. It provides a customer with a possibility
to select a device perfectly fitting his or her needs offering the best performance/cost
ratio. All devices of the M520 Oscilloscope Series offer extremely simple and
intuitive installation and operation, can adapt to any screen resolution (from
800 x 600 pixels upwards). They are powered directly from the USB interface.
- Frequency response of vertical amplifiers 60/150MHz
realtime sampling frequency 50/200MS/s
- Max. equivalent sampling frequency
- Size of storage for each channel 4/8K
The ETC M611 Logic analyzer is a package, which will
together with PC create 32 channel logic analyzer with sampling rate up to 100MHz.
Maximum length of record is 524280 of 32-bit words.
32 channel logic analyzer
Sampling rate up to 100MHz
Length of record 524280 of 32-bit words.
Software for measuring and later data analysis
Connected to PC via parallel
port (EPP) or USB
100MHz Digital Storage Oscilloscope|
ETC M221 is a package that turns
your PC compatible computer into a dual channel (four-channel) digital storage
oscilloscope with the 100 MHz bandwidth. The oscilloscope uses the 16-bit ISA
bus add-on card EM221 for data acquisition and the Scope software for processing.
Together it creates a very user-friendly environment, where all controls are easy-to-access
either by mouse or other pointing device. A user, who is used to operate a standard
oscilloscope, will master the M221 in a very short period of time.
Arbitrary Waveform Generator|
ETC M321 is a package that turns your
PC compatible computer into a 2-channel arbitrary generator. This device consists
of the EM321 ISA bus add-on card and a software, using which you can easily control
the device. All generator functions are easy-to-control by mouse. Besides standard
waveform types (sine wave, saw, triangle, rectangle), that are already implemented
and ready to use, it is possible to define or create desired waveform by using
the built-in powerful waveform editor by either entering a mathematical expression
or simply drawing a waveform by mouse. You can set a waveform shape and amplitude
independently for each channel.
Measurement Equipments from ETC |
| || |
oscilloscope BORDO 221|
Sampling rate is upto 100 MHz, equivalent sampling
rate-upto 20 GHz; two independent channels; resolution: 10 bit; bandwidth: 150
MHz; onboard memory: 64 K; analog input of external triggering; PCI bus; software
generator GSPF-052 |
Waveform generator GSPF-052 is a functional/arbitrary
waveform source which is used for automatic research tuning and testing devices
and systems in industry science and education.
Frequency range DC: 23MHz...10MHz;
high accuracy of amplitude and frequency setting; low level distortion ( less
than 0,1%); output waveform amplitude: +/- 5V on 50 Ohm.
waveform generator AGENT B230 |
The waveforms are standard; the beforehand
captured signals are rendered; sampling rate is upto 100 MHz; DAC resolution is
14 bit; onboard memory: 64 Kb; output voltage range: +/- 8V, +/-3V; autocalibration
on duty; analog I/O of external triggering; function of voltage meter and frequency
meter; software for Windows95/98/NT/2000/XP; PCI bus.
conversion card for PCI - n10M6PCI |
Sampling rate: up to 100 MHz;
mode of sampling rate task-setting - fixed frequency of a quartz generator; bandwidth:
50MHz; ADC resolution: 8 bit; speed of conversion: 20 ns; onboard memory; two
single-ended inputs for analog signals; analog inputs and external trigger inputs
can be either single-ended or differential.
ADC: resolution: 14 bit; conversion time: 2,5 ms; 32
single-ended channels or 16 differential channels; input resistance is more than
100 MOhm; switchable input voltage ranges of the ADC: ± 10V, ± 5V, ± 2,5V, ± 1V,
± 0,5V, ± 0,25V, ± 0,1V, ± 0,05V (for each channel); buffer memory of FIFO type,
2048 Words; 16 digital lines: 8 - input and 8 - output.
Other Measurement Equipments from Signal
