Measurement Equipments
 (IOtech,
USA) Data Acquisition (DAQ), Data Loggers
IEEE 488 (GPIB) Interfaces
Software for Data Acquisition
|
 |

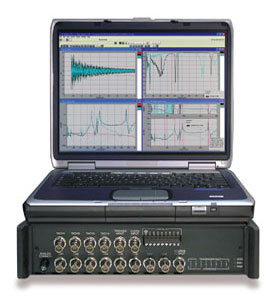

eZ-Analyst™
Real-Time Vibration and Acoustic Analysis Software for the ZonicBook™
and WaveBook™. eZ-Analyst software with the ZonicBook or WaveBook
is a complete vibration data acquisition and analysis package. - Real-time
FFT analysis
- Easy-to-use graphical user interface provides fast setup
- Field expandable from 8 to 56 channels
- Supports four separate
tachometer channels
- View all functions simultaneously in eight display
windows with up to 16 data overlays in each window
- Export your data to
Excel, ME Scope, SMS Star, or UFF type 58 ASCII or Binary
- Wide selection
of real-time analysis features, including integration/differentiation synchronous
averaging, and much more
|
 |

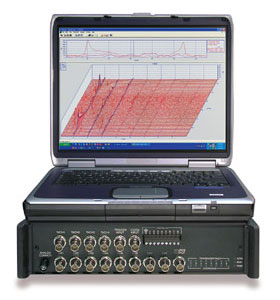

eZ-Rotate™
& eZ-RotatePlus™ Rotating Machinery Vibration Analysis Software
for the ZonicBook™ and WaveBook™. eZ-Rotate
software provides comprehensive post-acquisition analysis of vibration data acquired
from rotating machinery using IOtech’s ZonicBook™ and WaveBook™ measurement hardware.
eZ-Rotate makes it easy to view, analyze, and create reports on previously recorded
data, including computed order tracking, waterfall graphs, contour plotting, and
much more. eZ-Rotate works seamlessly with Microsoft Office® documents,
making it easy to copy plots and data directly into reports using Word® or Excel®.
eZ-RotatePlus offers all of the features of eZ-Rotate, plus advanced capabilities
such as Cepstrum analysis, sideband cursors, bearing cursors, gear box and planetary
gearbox cursors, and re-sampling to the angle domain to make sense of large families
of harmonics such as those found in flawed bearings. Torsional analysis supports
encoders and counters for non-contact measurements.
|
 |

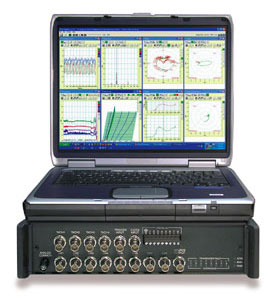

eZ-TOMAS™
Machine Vibration Monitoring Software for the ZonicBook™
and WaveBook™. eZ-TOMAS is the economical solution to
rotating machinery monitoring and analysis. eZ-TOMAS will monitor your machines
on a 24 hour basis. Data is continuously acquired and limit checked. eZ-TOMAS
retains the change in vibration condition and quickly provides you with the information
you need to make critical decisions. eZ-TOMAS can be quickly setup to measure
rotating machinery vibration data. Machine configuration and acquisition information
can be copied from templates or copied from existing projects. Accessing rotating
machinery displays are as simple as double-clicking on the desired input channel.
eZ-TOMAS checks vibration data at both alert and alarm levels. Alarm levels can
either be set by you; or eZ-TOMAS can automatically calculate alarm levels based
on past machine operation. Changes in vibration levels indicate changes in a machine’s
operating condition, which are warning signs of potential machine failure.
|
 |

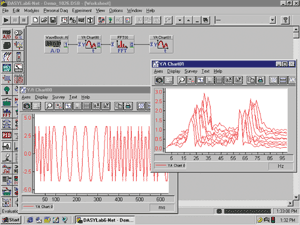

DASYLab®
Icon-Based Data Acquisition, Graphics, Control, and Analysis Software. DASYLab®
picks up where DaqView™
and WaveView™
leave off, letting you interactively develop PC-based data acquisition applications
by simply attaching functional icons. DASYLab offers real-time analysis, control,
and the ability to create custom graphical user interfaces (GUIs). What’s more,
in contrast to other graphical programming environments, which can require weeks
of training to master, DASYLab has a very short user-learning curve. Many applications
can be configured in a few minutes, rather than days or weeks.
|
 |
eZ-Balance™
Portable Machine Balancing Software for the ZonicBook™
and WaveBook™. Balance your rotating machinery with
eZ-Balance and the ZonicBook/618E. The combination of the ZonicBook/618E with
eZ-Balance provides a powerful system for multi-plane (up to 7 planes) balancing
applications. eZ-Balance computes the optimal balance weights and their locations,
based on vibration data collected from the ZonicBook/618E. The data is displayed
in a convenient Polar plot that indicates the magnitude and phase of the unbalance
as well as time and spectrum data.
|
 |
eZ-FrequencyView™
Post-Acquisition Analysis Software. Like eZ-PostView™, eZ-FrequencyView™
is supported with all IOtech data acquisition View packages and is automatically
integrated into your View application when you install it.
eZ-FrequencyView
adds powerful frequency domain display and analysis for just about any frequency
domain application. Both single channel and cross channels are supported as well
as function displays for spectrum, auto spectrum, PSD, and strip chart. For sound
and acoustical applications, both full and 1/3 octaves are supported.
|
 |
eZ-TimeView™
Post-Acquisition Analysis Software. Like eZ-PostView™, eZ-TimeView™
is supported with all IOtech data acquisition View packages.
Acquired
data can be played back in real-time or in single sampled data point increments.
The strip chart feature allows easy to use data scrolling as well as scaling of
the data by the user. Areas of interest can also be zoomed in via mouse movement
on the time axis or by a zoom box which allows zooming in on both the time and
the magnitude axis simultaneously. Searches can be performed on min or max peak
data.
eZ-TimeView also includes powerful calculation and statistics.
|
 |
ZonicBook/618E™
Portable Vibration Analysis and Monitoring System.
The ZonicBook/618E
with eZ-Series software and your PC makes a real-time, portable vibration analysis
monitoring system. - 8 dynamic input channels, expandable up to 56
channels
- 4 tachometer channels for rotational measurements
- High-speed
Ethernet connection to the PC for continuous recording
- Five eZ-Series
software packages address a wide variety of vibration monitoring and analysis
applications
- TEDS support
|
 |
WaveBook/516E™
Ethernet-Based Portable High-Speed Waveform Acquisition. The WaveBook/516E
is ideal for measuring dynamic signals in portable and laboratory applications.
- 16-bit/1-MHz A/D
- 1 µs/channel scanning of any combination of channels
- Single and multichannel analog triggering with programmable level and
slope
- Programmable pre- and post-trigger sampling rates
- Sixteen
digital inputs can be scanned synchronously with analog signals
- Expandable
up to 288 high-speed channels
- Add up to 854 lower-speed thermocouple
channels
|
 |
eZ-NDT™
Resonant Inspection System for the ZonicBook™. Product quality
can be measured and recorded using eZ-NDT. - Provides inspection of
metal, ceramic, and hard plastic parts
- Removes the ambiguity that is
common in other inspection systems
- Requires no parts preparation, making
the test fast and inexpensive
- Tests parts in less than 2 seconds
- Quantifies
and documents the first natural frequency for end-user comparison to final assembly
resonant frequencies
IOtech’s eZ-NDT (non-destructive test) systems
provide a fast and inexpensive method of 100% inspection of production parts,
such as powder metal, ceramics, and composites. eZ-NDT uses acoustic analysis
to identify part variations that are caused by process inconsistencies and defects.
eZ-NDT systems apply acoustic energy to your part, monitor its acoustic response,
and analyze its resonant frequencies. It then compares the results to the acoustic
signature of a known-good part stored in its library. The test takes less than
two seconds and requires no special tooling, dyes, chemicals, cleaning, magnetization,
or expensive and time consuming visual inspection equipment.
|
 |
LogBooks™
Stand-Alone, Intelligent PC-Based Data Acquisition Systems Models
/300, /360. The LogBook/360 data acquisition system includes an expansion bay
for up to three signal conditioning cards. - Operates without a PC at
the test site 16-bit, 100-kHz analog and digital sampling
- Compact yet
expandable architecture can accommodate over 400 channels of analog, digital,
and frequency I/O
- Stand-alone nonvolatile storage of over 500 million
samples via removable PC-Card memory
- Card swapping and uploading during
acquisition allows continuous data acquisition
- Communication with PC
via RS-232, parallel port, modem, or by transporting a PC-Card; optional RS-422
interface
|
 |
Micro488A™
Serial/IEEE 488 Controller Micro488A converts any computer with
a serial port into a full-featured IEEE controller.
Enables control of up
to 14 IEEE devices from any computer with an RS-232 or RS-422 port. Built-in 32,000
character data buffer. Supports baud rates up to 57,600 baud. OEM board-level
version available.
|
 | Micro488/p™
Miniature Serial/IEEE 488 Controller. The low-cost Micro488/p
enables IEEE 488 control from any computer equipped with a serial port.
Smallest
serial to IEEE 488 controller available. Controls up to eight IEEE 488 instruments.
Programmed with concise ASCII commands. Requires no external power supply—powered
from the computer’s serial port. Features standard DB25 serial and IEEE 488 connectors.
Enables remote control of IEEE 488 instruments. Easily connects to notebook PCs.
|
 |
Personal488/CARD™
IEEE 488.2 PC-Card Interface, Cable, and Software for Notebook
and Desktop PCs. The Personal488/CARD provides an IEEE 488.2 PC-Card interface
for notebook & desktop PCs. - Provides 600 Kbytes/s data transfer
- Complies
with PC-Card Standard Specification 2.1
- Type II (5 mm) compatible PC-Card
- Includes Windows® drivers
- Controls up to 14 instruments
|
 |
Personal488/PCI™
1 Mbyte/s PCI/IEEE 488.2 Board with Plug and Play, Digital I/O,
and Software for PCs. Personal488/PCI provides IEEE 488.2 one Mbyte/s data transfer
and plug-and-play installation. - Features PCI local bus compatibility
- Provides 1 Mbyte/s data transfer
- Features plug-and-play
- Offers
full IEEE 488.2 support
- Includes Windows® drivers
- Easily programmable
via familiar HP-style commands
- Functions as PCI bus master
- Provides
8-channels of general-purpose digital I/O
|
| Extender488™
& Extender488/F™
IEEE 488 Bus Extenders. The Extender488 enables
instruments to be located up to 4,000 feet from host IEEE controller.
Overcomes
the 20 meter cable limitation imposed by the IEEE standard by economically extending
the bus up to 1,000 meters via RS-422 or fiber optic.
Expands the number
of devices allowed on the bus from 15 to 28.
Operates transparently to the
IEEE controller; requires no programming changes for most applications.
|
 | Serial488A™
Serial/IEEE 488 Converter. The Serial488A transparently converts
between serial and IEEE devices.
Attach an RS-232 or RS-422 printer, plotter,
or instrument to an IEEE 488 controller. Attach an IEEE 488 (HP-IB) printer or
plotter to any computer with a serial port. 32K buffer frees the computer while
slow devices are accepting data.
|
 | Isolator488™
IEEE 488 Bus Isolator. Electrically isolate instruments on the
IEEE bus with Isolator488.
Electrically isolates individual instruments or
groups of instruments. Expands the number of devices allowed on the bus from 15
to 28. Operates transparently to the system; requires no programming.
|
 |
ADC488/16A™
& ADC488/8SA™
IEEE 488 A/D Converters with Digital I/O and Simultaneous
Sample & Hold. ADC488/16A provides many of the features found in expensive digital
oscilloscopes. - Provides 16-bit A/D conversion at up to 100,000 samples/s
- Offers 16 single-ended or 8 differential analog inputs, expandable using
master/slave configuration
- Provides ±1, ±2, ±5, and ±10 VFS programmable
input ranges
- Features continuous throughput to the IEEE 488 bus at 200
Kbytes/s (100,000 16-bit readings/s)
- Offers memory expansion up to 8
Mbytes (4 Msamples)
- Analog inputs isolated from ground by 500 VCM
-
Includes eight TTL-compatible digital inputs and eight TTL digital outputs
- LabVIEW®
examples available
|
 |
TempScan/1100™
& MultiScan/1200™
High-Speed Temperature & Voltage Scanning
Instruments. The TempScan/1100 and MultiScan/1200 offer high-speed temperature
and voltage measurement in compact, 19-in. rack-mountable enclosures.
IEEE
488 and RS-232/422 interfaces. 32 TTL digital alarm outputs and 8 TTL-compatible
digital inputs. 128 Kreadings of memory, expandable up to 4 Mreadings. Built-in
real-time clock.
TempScan/1100™: Measures thermocouples, volts, and
RTDs at up to 960 channels/s. Accepts optional scanning modules for measuring
thermocouples, RTDs, or DC volts.
MultiScan/1200™: Measures isolated
temperature, DC volts, AC volts, and waveforms in one compact instrument. Scans
thermocouples and DC volts at up to 147 channels/s. Single-channel burst mode
for digitizing waveforms at rates up to 20 kHz.
|
 |
DAC488HR/4™
16-bit D/A Converter with Digital I/O and IEEE 488. The versatile
DAC488HR functions as a voltage source, function generator, and an arbitrary waveform
generator. - Four isolated 16-bit outputs
- 100-kHz/channel
update rate
- 480 Ksamples/channel max buffer
- ±1, ±2, ±5, and
±10 VFS programmable unipolar and bipolar output ranges
- One-shot, step,
burst, waveform, and continuous output modes
- LabVIEW® examples available
|
 |
Digital488/80A™
80-Bit IEEE 488/Digital I/O Interface. The Digital488/80A provides
an economical link between an IEEE controller and digital signals.
|
 |
Digital488™
40-Bit IEEE 488 Interface. Digital488 provides an economical link between
an IEEE controller and digital signals.
Add TTL-level digital input and output
capability to IEEE 488 based systems. Offer 40 I/O lines, software programmable
as inputs or outputs in 8-bit groups. Convert I/O data to one of five selectable
formats and send it to the controller.
|
 |
DaqScan/2000™
Series Ethernet-Based Data Acquisition System Components.
- Adds analog I/O, digital I/O and frequency I/O to Ethernet-based test systems
- All I/O can be synchronous, enabling precise timing between various I/O
functions
- 8 differential, or 16 single-ended inputs, expandable up to
256 voltage or 896 TC channels using signal conditioning and expansion options
- Up to 40 built-in TTL-level digital I/O, expandable up to 256 channels
of isolated I/O using low-cost isolation modules
- Convenient 1U high 19”
rack mount package minimizes rack space in test systems
|
 |
DaqBoard/1000 IOtech
PCI and CompactPCI Data Acquisition Daq Board. - PCI Boards
- 16-bit
resolution
- 200-kHz sampling
- Includes support for Visual Basic®,
C/C++, ActiveX/COM, Linux, LabVIEW®, and MATLAB®
|
