BieneRemote connection diagramDEENENLVRU

Current Sensors | Liquid Level Sensors | Flow and Pressure Sensors
Moisture / Humidity Sensors | Temperature Sensors | CO2 and PH Sensors
Output Control | Power Supply and Battery powered

Stabilized Power Supply connection. Battery powered example.

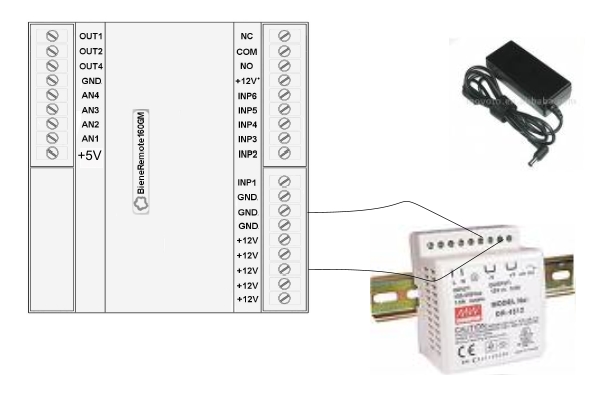

Stabilized AC/DC adapter connection

Stabilized +12VDC, >,5A (2A pulse) for BR16GM, BR160GM, 2A (3A pulse) for BR160SM, > 1,7A (2A pulse) for BR128GM, BR1280GM. Operational range +9 ... +15VDC stabilized.


Magnetic switch connection (BR160GM-V for vending machine or other applications; consumption from battery)


Compatibel with BR160SM-V or BR160GM-V

Water and fuel Level Switch connection
(consumption from battery)

Compatibel withr BR160SM-V2 or BR160GM-V2
