BieneRemote connection diagramDEENENLVRU

Current Sensors | Liquid Level Sensors | Flow and Pressure Sensors
Moisture / Humidity Sensors | Temperature Sensors | CO2 and PH Sensors
Output Control | Power Supply and Battery powered

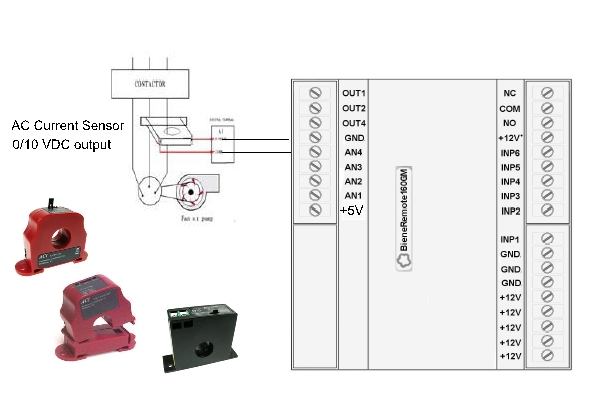

AC current sensor connection (0-10V output)

AC current sensor can be used to monitor fan and pump status, motors, compressors, and any other electrical equipment for proper operation. A change in the operating current may indicate mechanical failure or that the unit has been turned off. AC current sensors can be used in load trending (current monitoring) type applications.

AC current switch connection

AC current switch can be used to monitor fan and pump status, motors, compressors, and any other electrical equipment for proper operation. A change in the operating current may indicate mechanical failure or that the unit has been turned off.

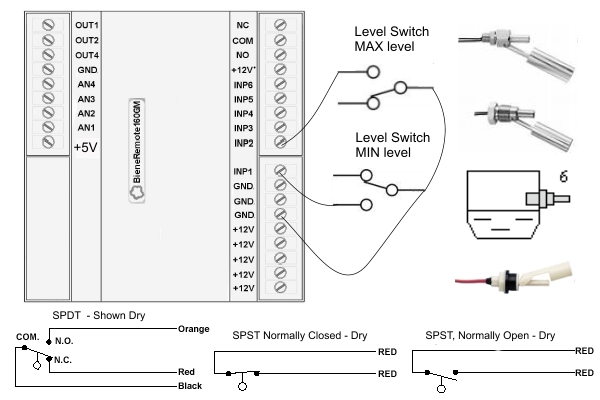

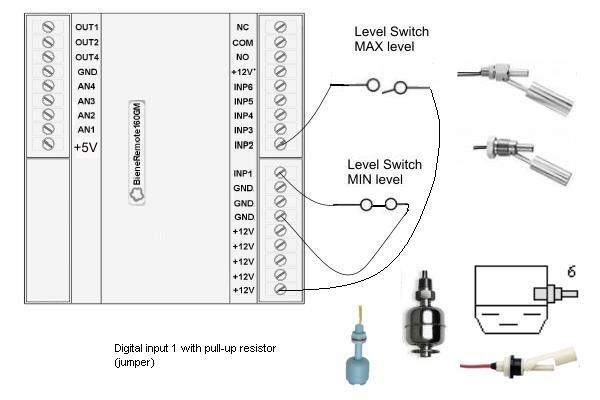

Water and fuel Level Switch connection

Water, fuel and other liquid level monitoring.


CO2 Sensoren


Soil moisture sensor connection (4-20mA output)

The EA-10 Soil Moisture sensor (ECH2O EA-10 Dielectric Soil Moisture sensor) is designed for use with industrial data acquisition and control systems. The EA-10 sensor has a standard 2-wire, 4-20 mA analog interface. Supply voltage: line powered 7-32 Volt; DC Overvoltage and reverse polarity protected

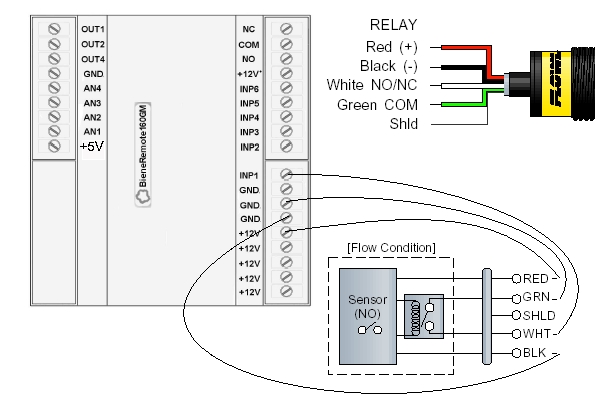

Liquid Flow Switches, Gas Flow Switches

Optic Leak Detection Switch LO10 (the general purpose optic switch is a great choice for leak detection in and around secondary containment sumps, tanks and pipes. The sensor can be applied in a broad range of chemical solutions. Media), Thermal Dispersion Flow Switch FT10 (the general purpose liquid flow switch) and Thermal Dispersion Flow Switch GT10 (the general purpose gas flow switch). Adjustable set point. NO / NC Output. The product is broadly selected for low or no-flow applications.

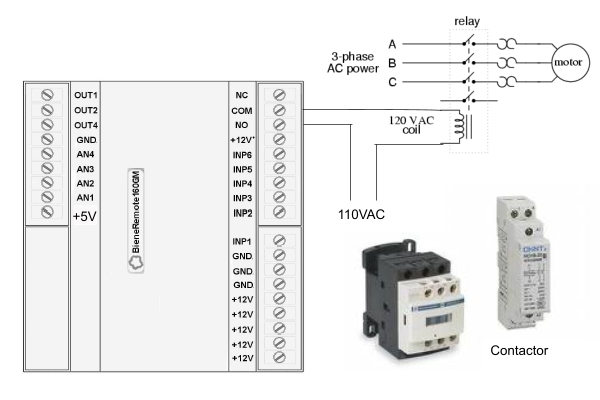

Contactor connection

A contactor is an electro-magnetic switching device (a relay) used for remotely switching a power or control circuit. A contactor is activated by a control input which is a lower voltage / current than that which the contactor is switching.

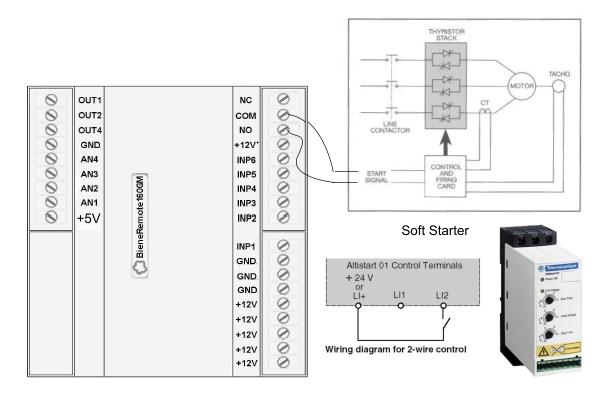

Soft Starter connection

A motor soft starter is a device used with AC electric motors to temporarily reduce the load and torque in the powertrain of the motor during startup. This reduces the mechanical stress on the motor and shaft, as well as the electrodynamic stresses on the attached power cables and electrical distribution network, extending the lifespan of the system.



Temperature sensor Smartec SMT160-30 connection

The SMT160-30 (TO18 model) has an overall accuracy of 0.7 C in the range from -30 C to +100 C and an accuracy of 1.2 C from -45 to +130 C.
SMT1603018 Probe: stainless steel tube 7 mm. x 40 mm. Cable: 5 m. PVC shielded, 3.5 mm. Absolute accuracy .7 C Linear output within .2 C.

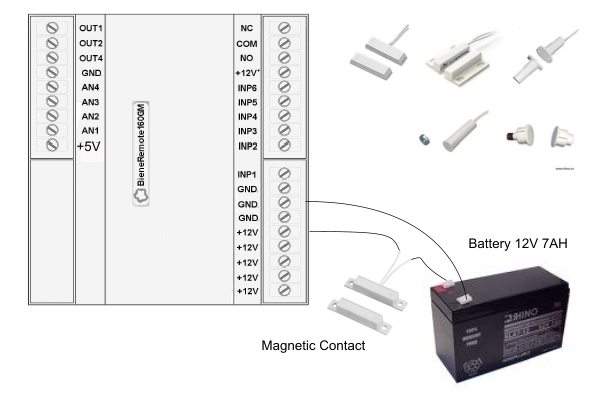

Battery via magnetic contact connection
(BR160SM-V for vending machine or other applications; consumption from battery)
